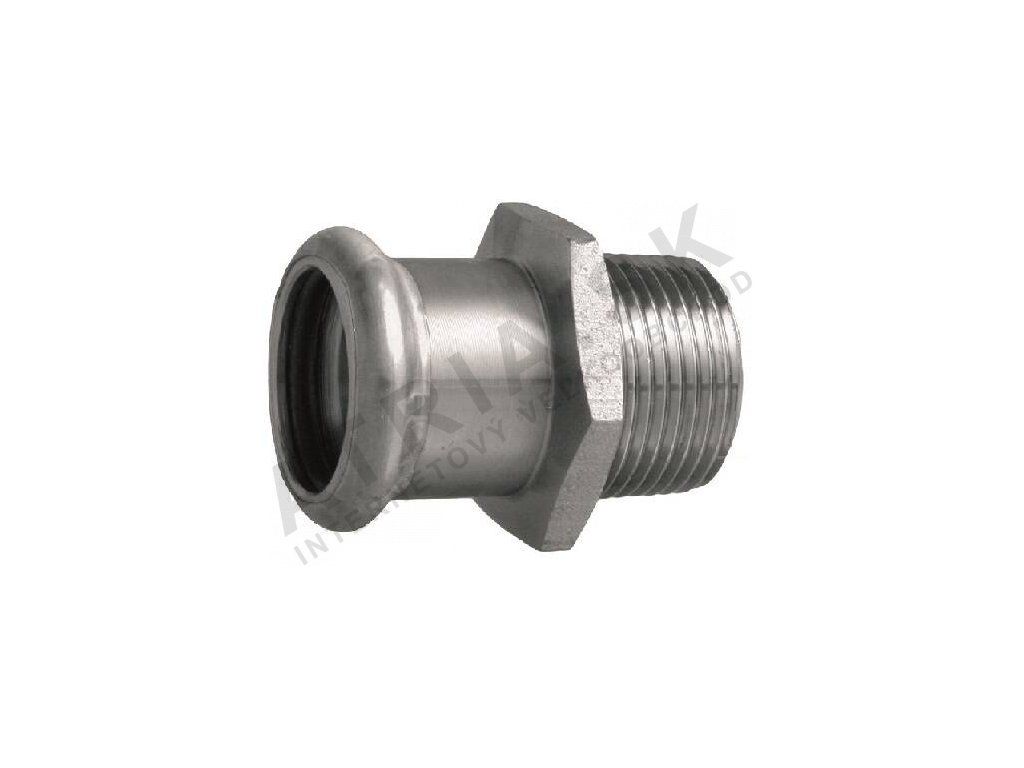

Adaptor - with external thread - C - 88,9mm-R3"
Code: IVC81.8930Related products
Product detailed description
Adaptor - with external thread, IVAR.IVC81, size: 88,9 mm x R 3, pack: 1 ks
- PN 16, T = -20 °C to +85 °C - max. +120 °C
- adaptor with external thread PRESS x THREAD
- purpose of use: for heating systems, permanently water-filled sprinkler systems,
pressurised dry air, inert gases and industry - material: galvanised carbon steel, O-ring - EPDM
- Compatible with type M jaws
Note:
Neobsahuje substances, which impair surface coating, not leak-tight ak nie is crimped and with indicator zalisovania into rozmeru 54 mm.
Options use
- installation rozvodov central heating v uzavretom (tlakovom) system
- installation rozvodov studenej vody and chladenia
- installation rozvodov fire-protection vodovodu
- installation rozvodov air-conditioning
- installation rozvodov for solar systems
Advantages
- fast and safe installation without zvarovania and making threaded spojov
- large rozsah priemerov trubiek and tvaroviek from 15 mm to/up to into 108 mm
- wide rozsah pracovnej teploty -20 C to/up to +180 C
- resistance for high tlaky into 16 bar
- option combination with other systems
- low weight trubiek and tvaroviek
- high estetika installation
- resistance proti mechanical damage
The pipe is not certified for drinking water.
Frequently Asked Questions
- What is this pipe intended for? The exact purpose (water, heating, gas, solar system, compressed air distribution, etc.) can be found in the description and technical parameters of this product - different materials (stainless steel, carbon steel) have different corrosion resistance and are certified for different media.
- How is this pipe connected? Usually with press fittings or welded joints, depending on the specific system and diameter - make sure to use compatible fittings of the same system.
- Must the installation be carried out by and professional? Yes, especially for gas or compressed air distribution or welded joints, the installation must be carried out by and person with appropriate professional qualification.
Additional parameters
| Category: | IVAR.IVC81 - adaptors - with external thread |
|---|---|
| Warranty: | 2 years |
| Weight: | 1.16 kg |
| Material type: | galvanized carbon steel |
| Operating temperature: | -20 °C |
| High-pressure resistance up to: | 16 bar |
| Nominal pressure: | PN 16 |
